Toyota Hilux Vigo Single (Standard) Cab
Jim Autos Thailand is proud to be Thailand's largest exporter of Single Cab Toyota Hilux Vigo while Jim 4x4 Thailand is Thailand's largest exporter of nearly new or quality used Single Cab Toyota Hilux Vigo or Toyota Hilux Tiger. Email us now at [email protected] for your very own Toyota Vigo or Toyota Hilux Tiger.
Vigo Single Cab Specifications (complete)
Grade |
3.0 J-PS
|
2.5 J-PS
|
2.5 J
|
2.5 J-ECO
|
Model Code |
KUN16R-TRMDYT
( AE ) |
KUN15R-TRMDYT
( AB ) |
KUN15R-TRMDYT
( AA ) |
KUN15R-TRMDYT3
( AD ) |
Size and Weight | ||||
Outside dimension mm. |
5130 x 1760 x 1680 ( L x W x H )
|
|||
Wheel length mm. |
3085
|
|||
Wheel width mm. |
1510 x 1510 ( Front / Back wheel )
|
|||
Ground clearance mm. |
181
|
|||

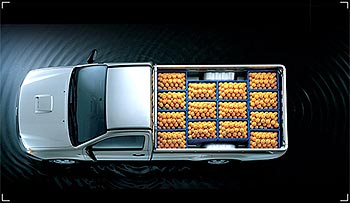

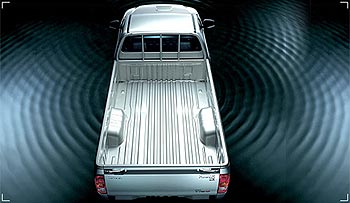

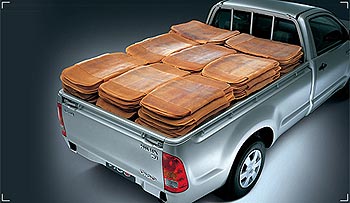

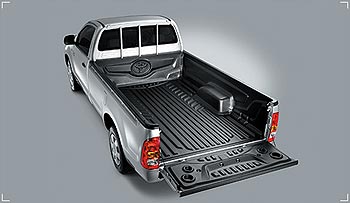

Tray interior mm. |
1520 x 2315 x 450 ( W x L x H )
|
|
||
Interior mm. |
1475 x 1340 x 1190 ( W x L x H )
|
|||
Weight (approximately) kg. |
1520
|
1450
|
1390
|
|
Engine | ||||
Engine model
|
1KD FTV
|
2KD-FTV ( I/C )
|
||
Engine type
|
4 Cylinder DOHC 16 valve variable nozzle turbo & intercooler
|
4 Cylinder DOHC 16 valve Turbo
|
||
Displacement cc.
|
2982
|
2494
|
||
Bore x Stroke mm.
|
97.0 x 103.0
|
92.0 x 93.8
|
||
Compression ratio
|
17.9 : 1
|
18.5 : 1
|
||
Max output (SAE net) kw(EEC net)/rpm
|
120 ( 163 ) / 3400
|
75 ( 102 ) / 3600
|
||
Max torque (SAE net ) (N-m)/rpm
|
343 / 1400 - 3200
|
200 / 1400 - 3200
|
||
Fuel providing system |
Direct Injection Commonrail type
|
|||
Fuel tank capacity litre |
76
|
|||
Emission Standard |
Euro 3
|
|||
Chassis | ||||
Driving system |
|
|
|
|
Gear ratio : 1 |
4.313
|
3.928
|
||
: 2 |
2.330
|
2.333
|
||
: 3 |
1.436
|
1.451
|
||
: 4 |
1.000
|
1.000
|
||
: 5 |
0.838
|
0.798
|
||
: 6 |
4.220
|
4.743
|
||
Final gear ratio Per 1 |
3.583
|
4.100
|
||
Suspension Front |
Independent-wishbone, torsion bar with stabilizer
|
|||
Back |
Regid-elliptic leaf springs
|
|||
Brake Front |
Ventilated Discs
|
|||
Back |
Drum with brake oil valve SUPER LSPV with LTS
|
|||
Power Steering |
|
|
|
|
Min. turning radius m. |
5.9
|
|||
Tyre |
205 / 70R15C*
|
195R14C
|
||

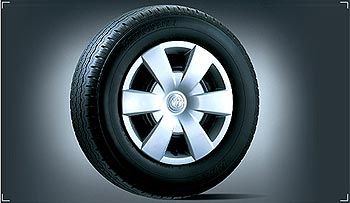

Wheel |
Steel wheel
with cover size 6JJ x 15* |
Steel wheel
with cover size 5.5JJ x 14 |
||
General equipment
|
||||
Exterior | ||||
Bumper bar |
Single piece Black Colour
|
|||

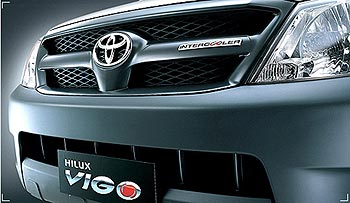

Front grill |
Black Color
|
|||
Front light |
Halogen multi reflector
|
|||

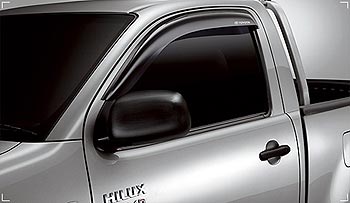

Door mirrors |
Black Colour
|
|||
Mud flaps |
Front and back
|
Front only
|
||

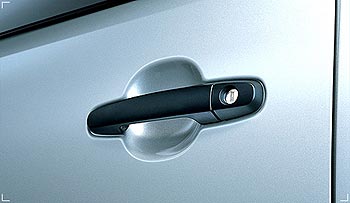

Door handles ( Grip Type ) |
Black Colour
|
|||
Wiper |
Adjustable 3 levels
|
|||
Interior | ||||

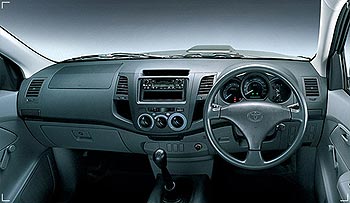

Instrument panel : | ||||
Tachometer | ||||
Kilometer |
Digital
|
|||
Warning signal : | ||||
Fuel level
|
||||
Oil filter light
|
||||
Headlight- turn off
warning sound |
||||
Key warning sound
|
||||
Door-closed warning light
|
||||
Seat-belt warning light
|
On driver side
|
|||
Interior lights : | ||||
Ashtray
|
||||
Rear mirror
|
Reduction of light -reflecting
|
|||

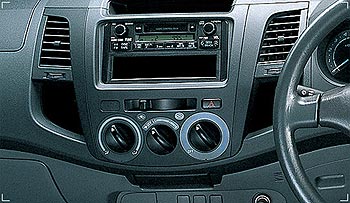

Audio : | ||||
Radio-cassette
|
|
|||
Speakers
|
2
|
|||
Antenna
|
Front position
|
|||

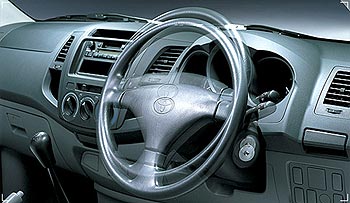

Steering wheel |
Urithene 3 spokes adjustable
|
|||
Hand brake |
Position at the seats
|
|||
Sun visor : | ||||
Driver side
|
With name card keeper
|
|||
Passenger side
|
||||
Door console : |
Vinyl
|
|||
Arm rest | ||||

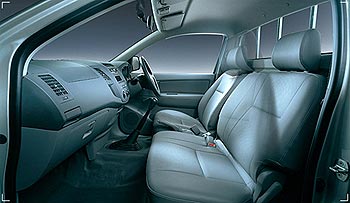

Seats : | ||||
Type
|
Vinyl grey separated type 60 : 40 for 3 persons
|
|||
Adjustable at driver side
|
||||
Backward adjusting
|
||||
Fuel cap release | ||||

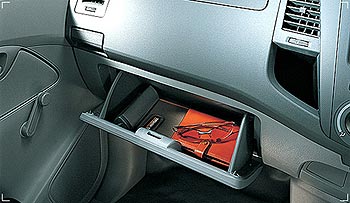

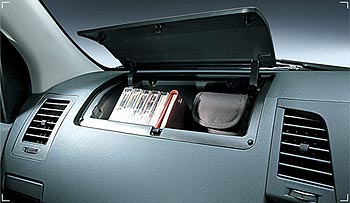

Glove box : Position | ||||
Top console
|
||||
Bottom console
|
With key
|
|||
2 doors panel
|
With bottle holder
|
|||
Cup holder : |
2 positions at front console
|
|||
Foot rest | ||||
Safety | ||||
GOA Body | ||||
Side racks | ||||
Safety Windscreen | ||||
Seat belts |
ELR 3 points 2 positions and NR 2 points 1 position
|
|||
Collapsible steering wheel | ||||
Side impact protection | ||||
Automatic oil valve cutting | ||||
Extra Equipments | ||||
Air-con |
With control switch rotate-type |
|
Remarks := Not Available * : SPECIAL ORDERING PARTS
Vigo Standard Cab J
Model : |
Hilux Vigo Standard Cab J-PS 1KD |
Hilux Vigo Standard Cab J-PS 2KD(L) |
Hilux Vigo Standard Cab J |
Hilux Vigo Standard Cab J-ECO |
Engine Type : |
1KD-FTV Inline 4 DOHC VN Turbo Intercooler |
2KD-FTV Inline 4 DOHC VN Turbo Intercooler |
2KD-FTV Inline 4 DOHC VN Turbo Intercooler |
2KD-FTV Inline 4 DOHC VN Turbo Intercooler |
Engine Capacity : |
2982 |
2494 |
2494 |
2494 |
Style : |
Single Cab |
Single Cab |
Single Cab |
Single Cab |
Driving System : |
2WD |
2WD |
2WD |
2WD |
Transmission : |
Manual 5 Speed |
Manual 5 Speed |
Manual 5 Speed |
Manual 5 Speed |
