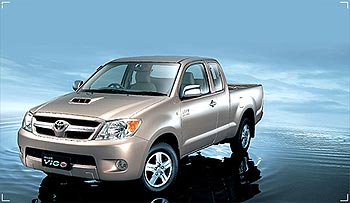

Toyota Hilux Vigo Extra Cab

Jim Autos Thailand is proud to be Thailand's largest exporter of Extra Cab Toyota Hilux Vigo while Jim 4x4 Thailand is Thailand's largest exporter of nearly new or quality used Extra Cab Toyota Hilux Vigo or Toyota Hilux Tiger. Email us now at jim12cars@gmail.com for your very own Toyota Vigo or Toyota Hilux Tiger.



Vigo Extra Cab Specifications

Grade

3.0 G
3.0 E
2.5 E
Model Code
KUN26R-CRMSYT
( AN )
KUN26R-CRMSYT
( AM )
KUN25R-CRMSHT
( AJ )
Size and Weight
Outside dimension mm.
5130 x 1795 x 1810 ( L x W x H )
Wheel length mm.
3085
Wheel width mm.
1540 x 1540 ( Front / Back wheel )
Ground clearance mm.
212

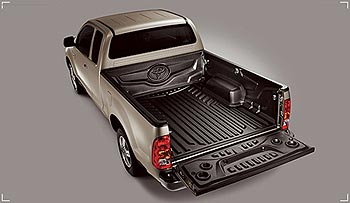

Tray interior mm.
1515 x 1805 x 450 ( W x L x H )
Interior mm.
1475 x 1840 x 1190 ( W x L x H )
Weight (approximately) kg.
1550
1540
Engine
Engine model
1KD FTV
2KD-FTV ( I/C )
Engine type
4 Cylinder DOHC 16 valve variable
nozzle turbo & intercooler
4 Cylinder DOHC 16 valve
turbo & intercooler
Displacement cc.
2982
2494
Bore x Stroke mm.
97.0 x 103.0
92.0 x 93.8
Compression ratio
17.9 : 1
18.5 : 1
Max output (SAE net) kw(EEC net)/rpm
120 ( 163 ) / 3400
88 ( 120 ) / 3600
Max torque (SAE net ) (N-m)/rpm
343 / 1400 - 3200
320 / 2000
Fuel providing system
Direct Injection Commonrail type
Fuel tank capacity litre
76
Emission Standard
Euro 3
Chassis
Driving system
5 speed manual
Gear ratio                        : 1
4.313
                                        : 2
2.330
                                        : 3
1.436
                                        : 4
1.000
                                        : 5
0.838
                                   Reverse
4.220
Final gear ratio         Per 1
3.583
3.909
Suspension            Front


Independent-wishbone, torsion bar with stabilizer and automatic cutout ( A.D.D. )
                                Back
Rigid-elliptic leaf springs with limited slip
Brake                      Front
Ventilated Discs
                                Back
Drum with brake oil valve SUPER LSPV with LTS
Power Steering
Power assisted Rack and Pinion
Min. turning radius m.
6.2
Tyre
255 / 70R15C
Wheel
Alloy wheel size 7JJ x 15

General equipment
Exterior

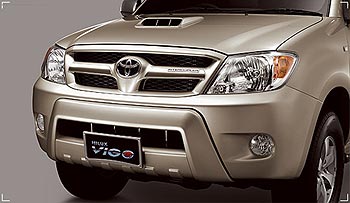

Bumper bar Body Coloured

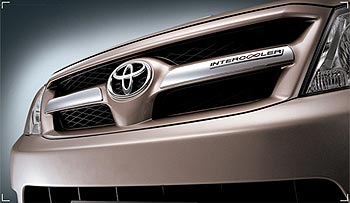

Front grill Body Coloured with Chrome

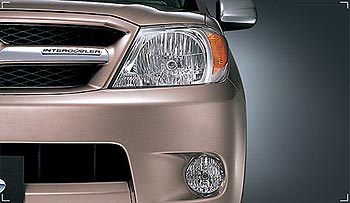

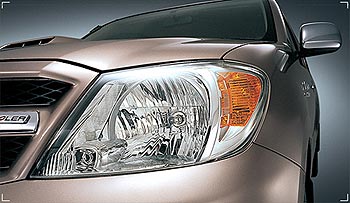

Front light Halogen multi reflector

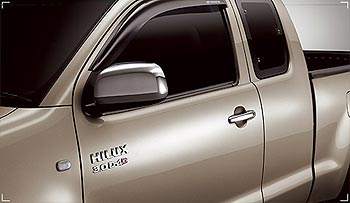

Door mirrors Chrome ElectJackcally Adjustable
Mud flaps Only 2 wheels at back side
Door handles ( Grip Type ) Chrome
Wiper Time Setting

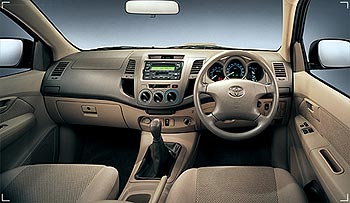

Interior

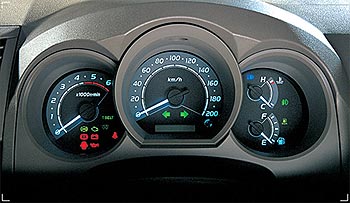

Instrument panel:
                   Tachometer
                   Kilometer
Digital
Warning signal :
Fuel level

Oil filter light

Headlight- turn off
warning sound

Key warning sound

Door-closed warning light

Seat-belt warning light
On driver side
Interior lights :
Ashtray
With Light
Rear mirror
Reduction of light -reflecting
Audio :
Radio-cassette

Speakers
4
Antenna
Front position
Steering wheel      Adjustable
Urithene 4 spokes
Type
Urithene 4 spokes
Urithene 3 spokes

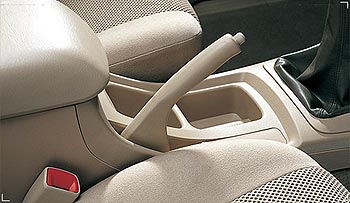

Hand brake
at center console
Sun visor :
Driver side
With name card keeper
Passenger side
With small mirror
Power windows

Central lock
Key remote
Alarm system and key immobilzer
Power socket 1 Socket 12 Voltages
Interior handles 3 positions at front
Door console :
Type
Standard
Material
Velvet
Arm rest
Front

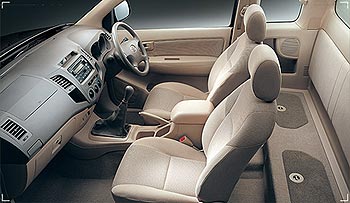

Seats :
Separated type
Type
Separated type
Material
Velvet creamy colour
Front seats : Adjustable
With walk-in system
Backward adjusting

Height level adjusting

Pillow

Back seats : Type
Pillow
Fuel cap release

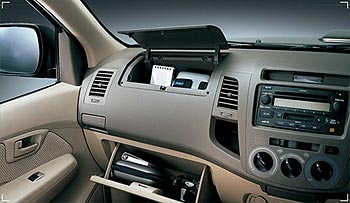

Glove box :
Center console
With cover
Top console

Bottom console
With key

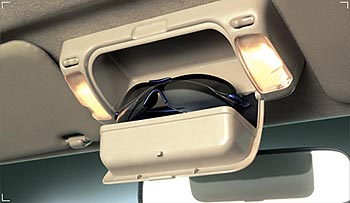

Sun glass box
Same position of light map
Door console
2 doors with bottle holder
Cup holder :
2 positions at front console
1 position at center console

With key

With bottle holder
Cup holder :
2 positions at front console
Foot rest
Active Safety
ABS
Third brake light

Fog lights
Heated rear windscreen

Interior door locking

Passive Safety
GOA Body
Side racks
Windscreen
Safety glass
Air bag Only driver side
Seat belts
Front seats
ELR 3 points 2 positions
Rear seats
Adjustable
Front passenger seat and drive seat
Collision protection body
Collapsable steering wheel
Side impact protection
Automatic oil valve cutting
Extra Equipments

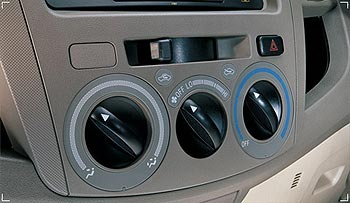

Air-con

With control switch rotate-type

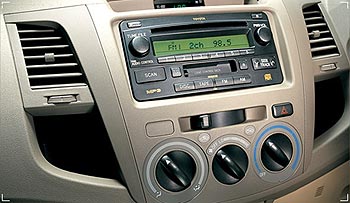

Audio 1 CD with MP3

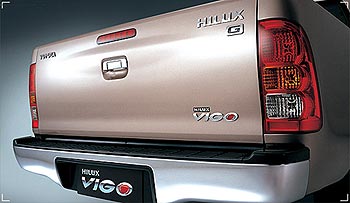

Rear bumper
Chrome
Wheel arch
Body coloured
Side step
Fog lights

Remarks := Not Available



Vigo 2WD Extra Cab 3ooocc



Model :

Hilux Vigo Extra Cab 3.0 G

Hilux Vigo Extra Cab 3.0 E

Engine Type :

1KD-FTV Inline 4 DOHC VN Turbo Intercooler

2KD-FTV Inline 4 DOHC VN Turbo Intercooler

Engine Capacity :

2982

2982

Style :

Extra Cab

Extra Cab

Driving System :

2WD

2WD

Transmission :

Manual 5 Speed

Manual 5 Speed



Vigo 2WD Extra Cab 2500cc

Model : Hilux Vigo Extra Cab 2.5 G Hilux Vigo Extra Cab 2.5 E Hilux Vigo Extra Cab 2.5 J-PS Hilux Vigo Extra Cab 2.5 J-
Engine Type : 2KD-FTV Inline 4 DOHC VN Turbo 2KD-FTV Inline 4 DOHC VN Turbo 2KD-FTV Inline 4 DOHC VN Turbo 2KD-FTV Inline 4 DOHC VN Turbo
Engine Capacity : 2494 2494 2494 2494
Style : Extra Cab Extra Cab Extra Cab Extra Cab
Driving System : 2WD 2WD 2WD 2WD
Transmission : Manual 5 Speed Manual 5 Speed Manual 5 Speed Manual 5 Speed
